Nothing gets through
SCHEIDT Concrete drip pans
This is why we manufacture prefabricated sumps/transformer foundations that are designed to collect water-polluting liquids escaping from a plant. Tight and resistant to the substances stored or to be retained, the Scheidt concrete drip tray fulfils the technical regulations for handling substances hazardous to water, e.g. TRwS 786, DAfStB-RL BUmwS.

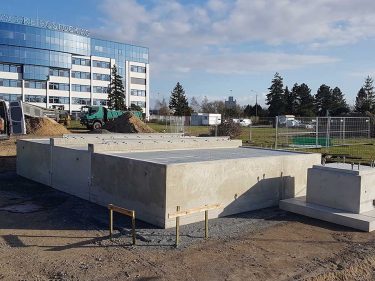

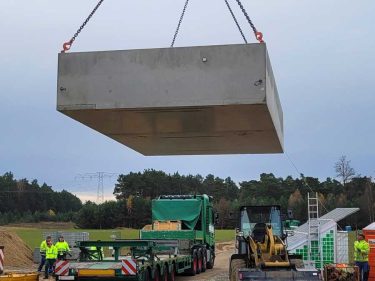

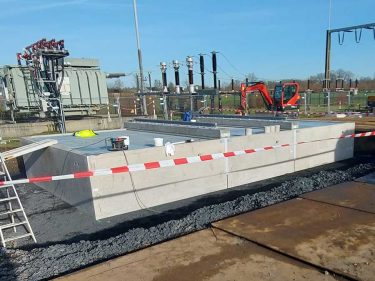

Sump trays (foundation tray) for transformers | LAU/HBV systems
Designed as a modular system for different system sizes/collection volumes, the drip tray can be customised to meet your individual requirements. The series offer a wide range of possible combinations.

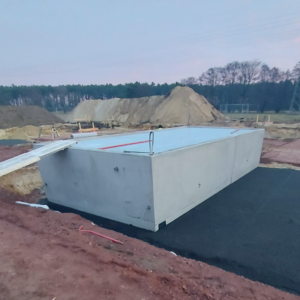

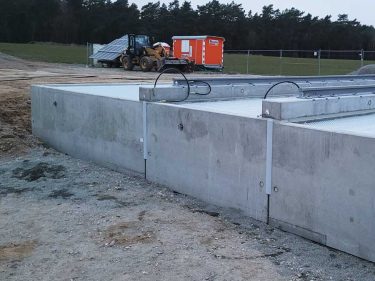

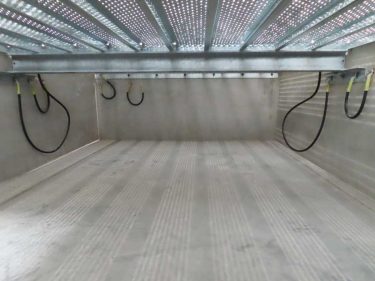

The equipment is comprehensive: concrete or grating cover with access hatch, earthing bushings, closed HRD sealing kits and DN 125 stainless steel tray connectors. We are also happy to take care of transformer rails, roofing and other installations and superstructures for you.
Sump trays according to TRwS 786 with DIBt approval
Our sump tray system has a general building authority approval from the DIBt, which generally covers the water law suitability assessment (according to §63 WHG) and thus significantly shortens the processing time in the building authority approval procedure.
Data on SCHEIDT collection trays

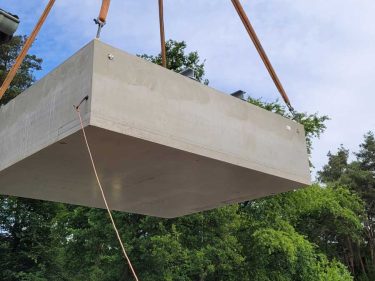

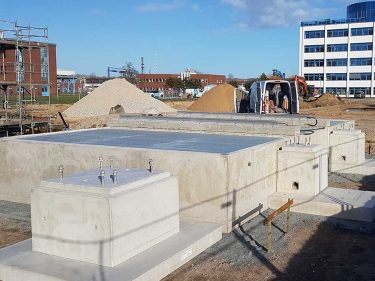

Concrete troughs, uncoated liquid-tight
(e.g. compared to transformer oil)
- FDE concrete according to DAfStB - Guideline BUmwS: liquid-tight concrete with penetration test
- uncoated liquid-tight against diesel, transformer oil
- Strength class according to DIN 1045-2: C35/45
- Exposure classes according to DIN 1045-2: XC4, XF3, XA1, XD1*, XS1*
*Application limits, if required for the project
Concrete troughs, media-related use
Optional after testing and coordination:
- Sheet steel lining alloyed/unalloyed steel
- Plastic trays or foil lining PE, PP, PVC
- Special coating:
Impermeable, resistant to liquids/weathering, can be walked on to a limited extent
W series
Sump trays without additional equipment
- Under LAU systems (storage, filling, decanting)
- Under HBV systems (manufacture, treatment, use)
- For handling areas/contaminated extinguishing water

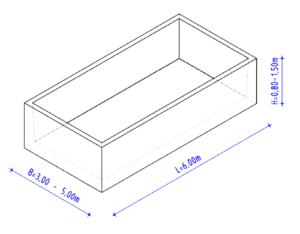

SCHEIDT W-1
Catch basin concreted in a concreting aisle, max. length: 6m

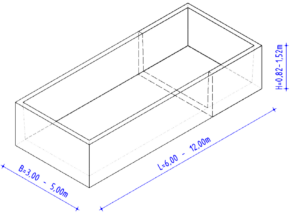

SCHEIDT W-2
Catch basin in two concreting passes (with sealing tape in
of the construction joint) concreted, max. length: 12m
WE series
- For stationary tanks, pumps, agitators
- For transformers, e-coils

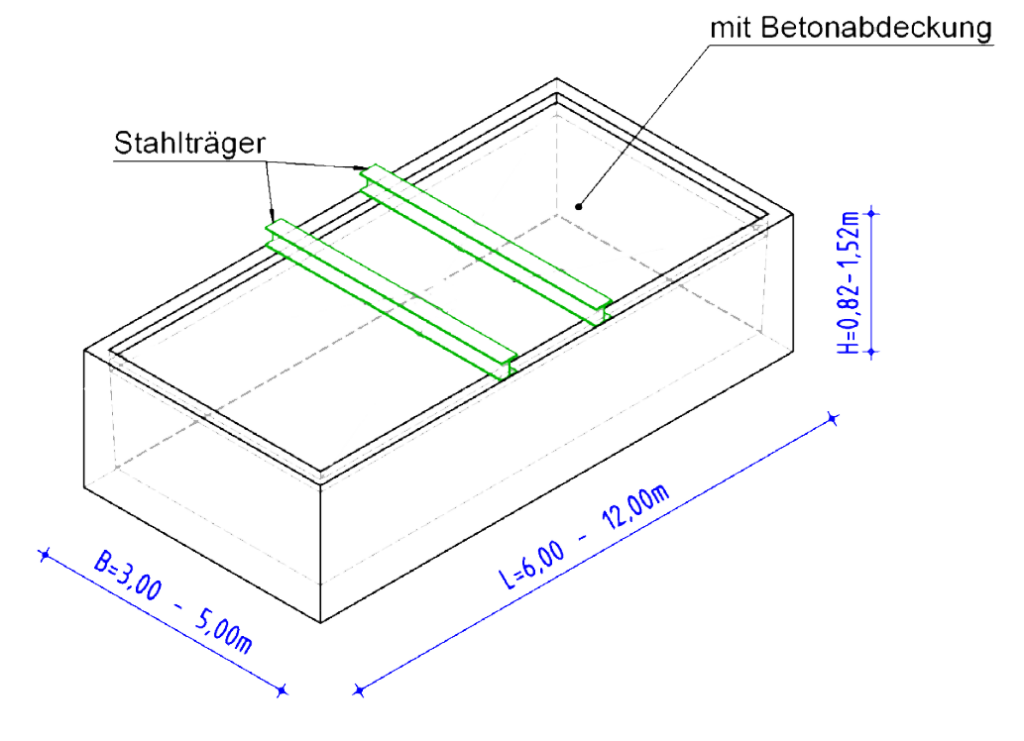

SCHEIDT WE-1

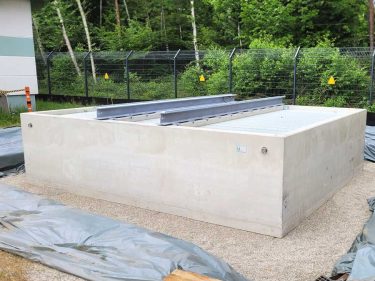

- Sump tray with inserted concrete cover
- Can be produced in one or two concreting cycles Max. length
up to 12m

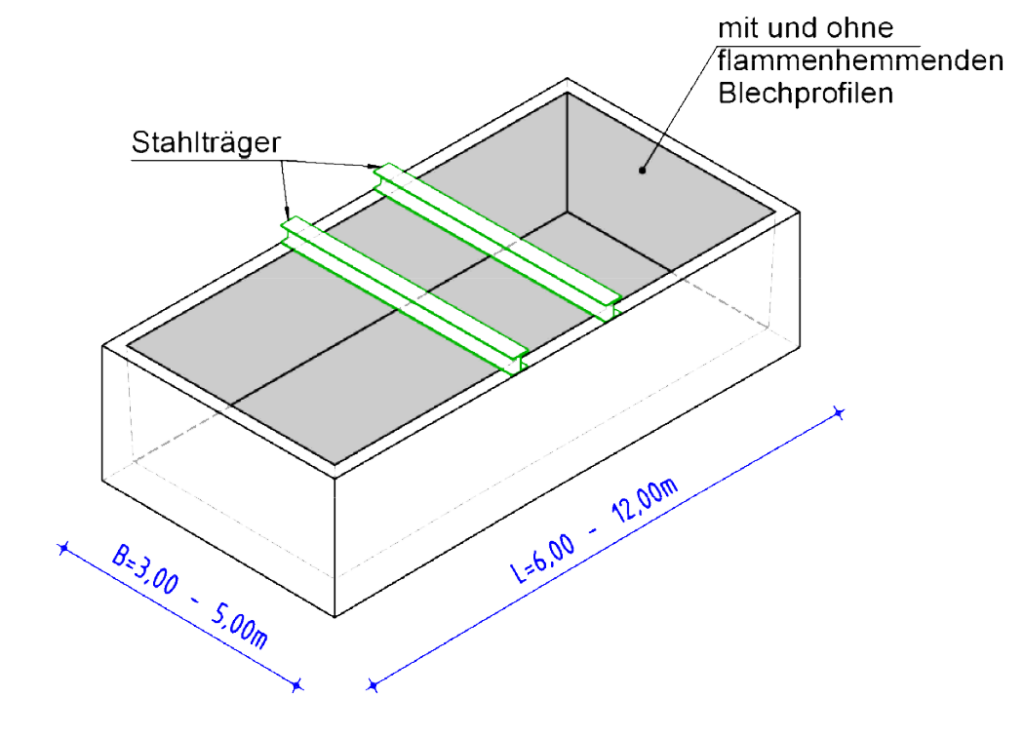

SCHEIDT WE-3
- Sump tray without partition wall
- With or without covering with flame-retardant sheet metal profiles
- Can be produced in one or two concreting cycles Max. length
up to 12m

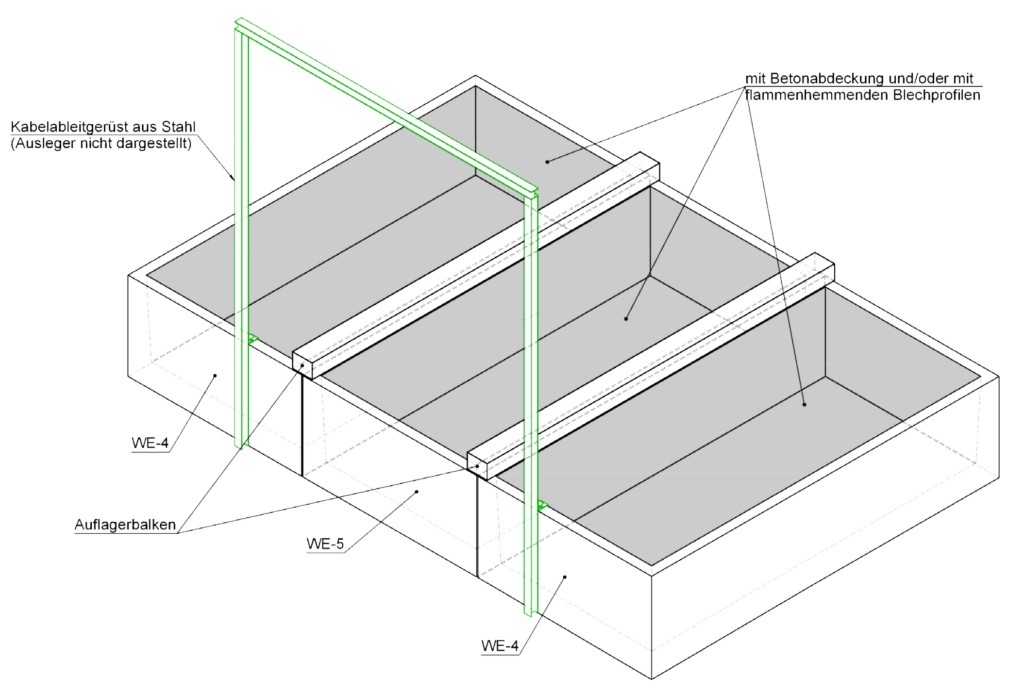

SCHEIDT WE-4 and WE-5
WE-4 Sump tray: Outer tray
WE-5 Sump tray: Inner tray
- Combination tray
Possible dimensions
- Length: 600 cm - 1300 cm in 1 cm increments
- Width: 300 cm - 500 cm in 10 cm increments
- Can be combined to maximum size: 13 m x 13 m
- Clearance height: 80 cm, 100 cm, 120 cm, 130 cm
- Thickness of the base slab: 22 cm
Equipment

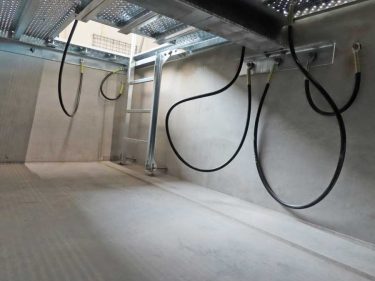

- Flame-retardant concrete or grating cover with access hatch
- Transformer rails
- Other installations and superstructures after approval by the DIBt according to customer requirements

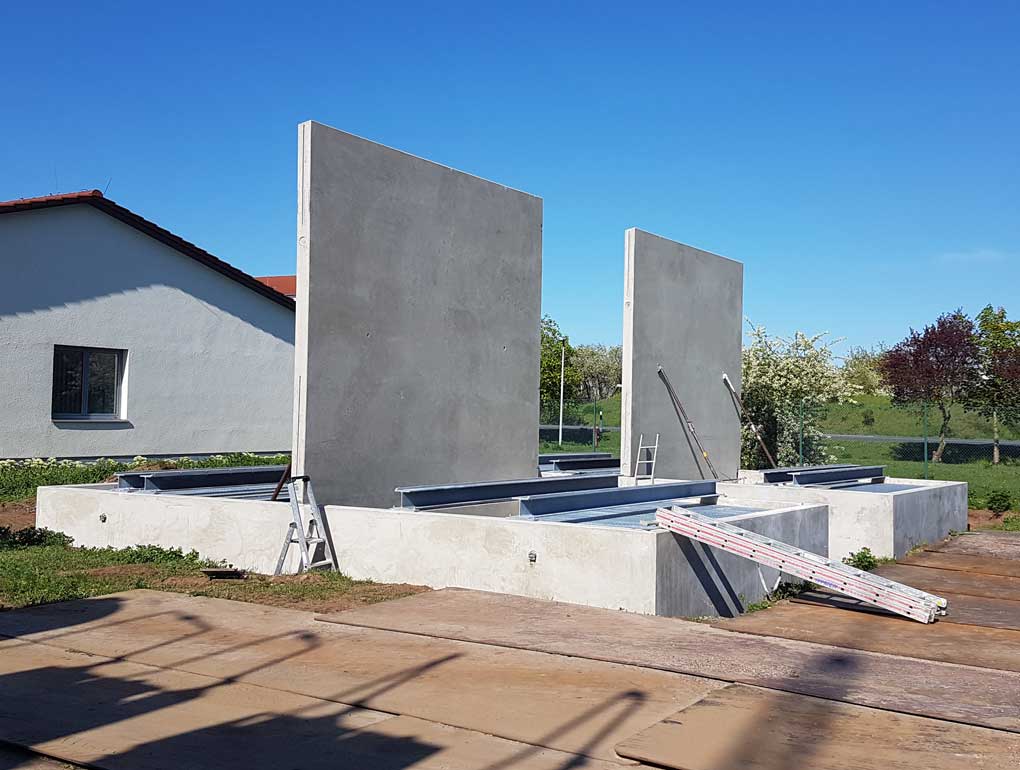

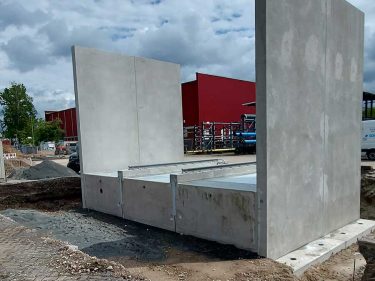

- Fire protection walls
