SCHEIDT SYSTEM NEK

Non-walk-in stations, element construction

The SCHEIDT SYSTEM NEK in detail.

Technical data:

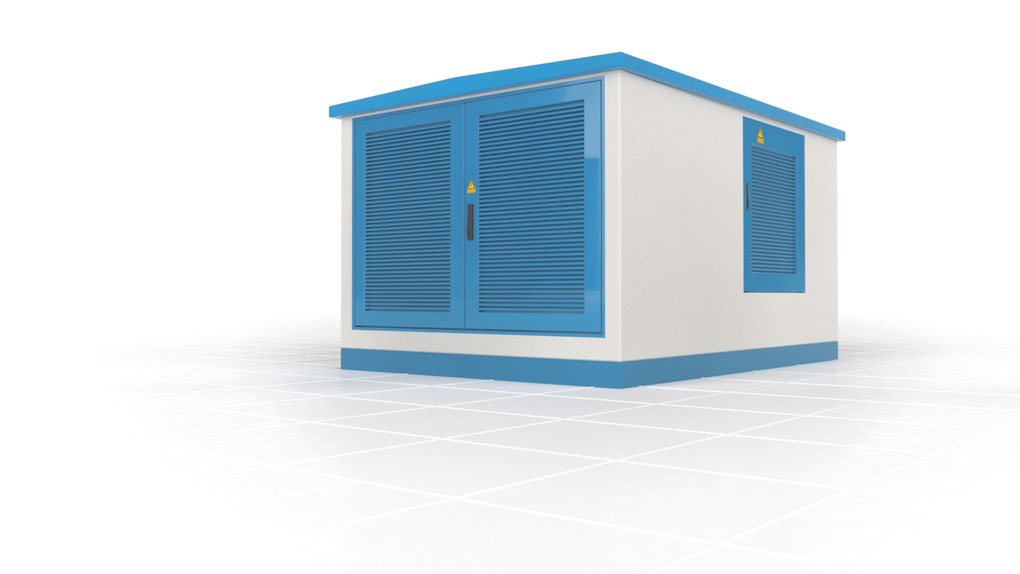

SCHEIDT SYSTEM NEK 250-350 (max. 700)

Rated capacity:  max. 2500 kVA¹
External dimensions:
W: 2.50 m L: 3.50 m H: 2.79 m
Dimensions inside:
W: 2.20 m L: 3.20 m H: 2.50 m
Total weight empty:² about 12.70 t
Roof weight: about 3.10 t
Built-up area: 8.75 m²
Constructed space: 24.42 m³
Effective area: 7.04 m²
Station stop: KKT-10
Roof anchorage: Rd16
Standard door dimensions Light door dimension Light door dimension
Standard dimensions Steel doors Aluminum doors
W: 2155 x H: 1320 mm W: 2065 x H: 1230 mm W: 2095 x H: 1185 mm
W: 1100 x H: 1320 mm W: 1030 x H: 1230 mm W: 1055 x H: 1185 mm

¹ Installed rated capacity depending on the transformer losses
and the ventilation technology used.

² Empty weight depending on the station structure.

SCHEIDT SYSTEM NEK
