SCHEIDT SYSTEM NZ

Non-walk-in stations, cell construction

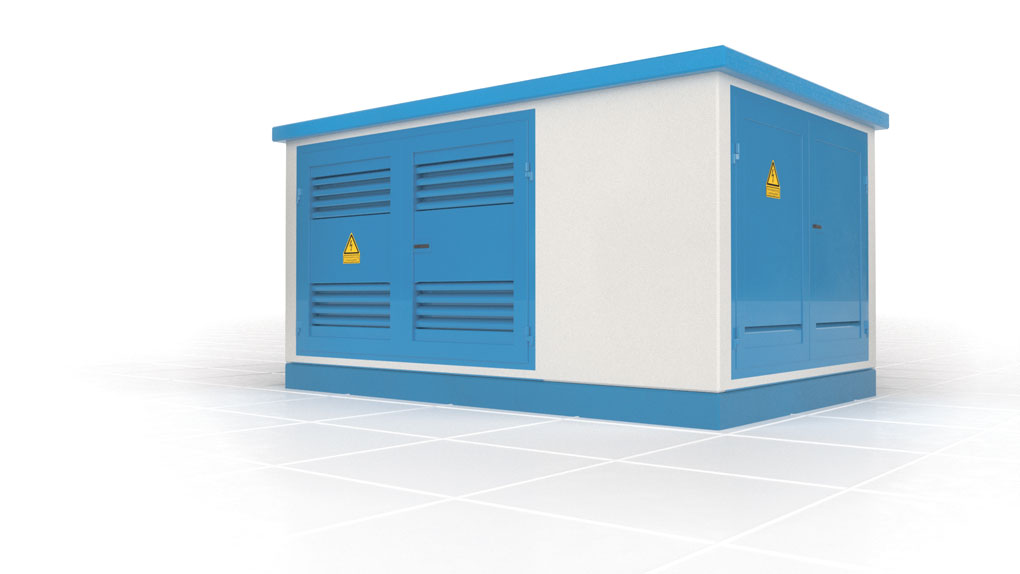

The SCHEIDT SYSTEM NZ 195-310 in detail.

Technical data:

SCHEIDT SYSTEM NZ 195-310

 Rated capacity:  max. 800 kVA¹
External dimensions:
W: 1.95 m L: 3.10 m H: 2.37 m
Dimensions inside:
W: 1.67 m L: 2.82 m H: 2.14 m
Total weight empty:² about 8.01 t
Roof weight: about 1.82 t
Built-up area: 6.05 m²
Constructed space: 14.33 m³
Effective area: 4.71 m²
Station stop: Rd30
Roof anchorage: Rd16
Standard door dimensions Light door dimension Light door dimension
Standard dimensions Steel doors Aluminum doors
W: 1850 x H: 1320 mm W: 1760 x H: 1230 mm W: 1790 x H: 1185 mm
W: 1695 x H: 1320 mm W: 1605 x H: 1230 mm W: 1635 x H: 1185 mm
W: 1100 x H: 1320 mm W: 1030 x H: 1230 mm W: 1055 x H: 1185 mm

¹ Installed rated capacity depending on the transformer losses
and the ventilation technology used.

² Empty weight depending on the station structure.
