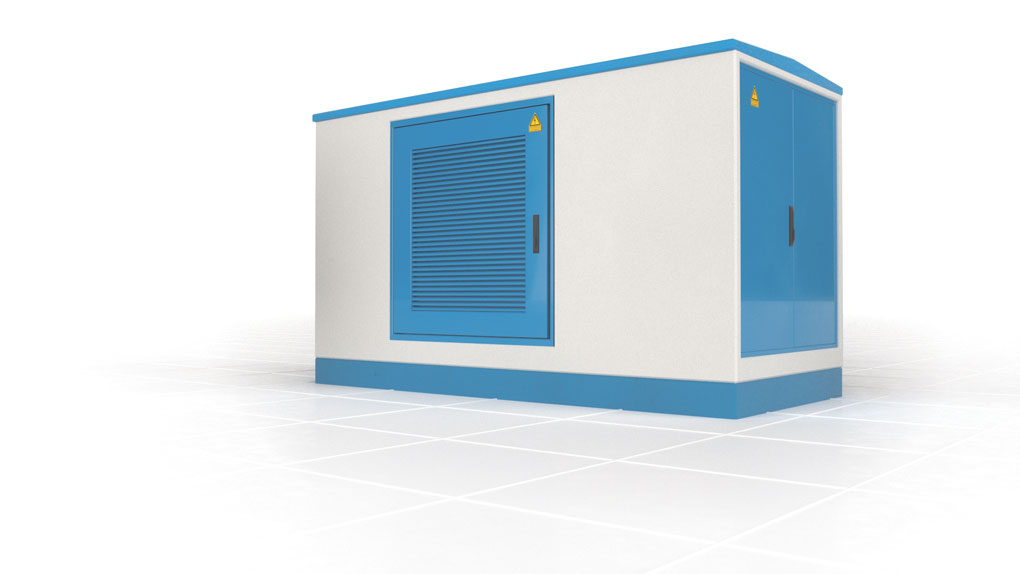

SCHEIDT SYSTEM NZ 210-240 XXL
210-240 XXL Technical data, dimensions
| Rated power: | max. 630 kVA¹ | |
| External dimensions: | ||
| B: 2.10 m | L: 2.90 m | H: 2.39 m |
| Internal dimensions: | ||
| B: 1.86 m | L: 2.66 m | H: 2.14 m |
| Total empty weight:² | approx. 8.06 tonnes | |
| Roof weight: | approx. 1.96 tonnes | |
| Developed area: | 6,09 m² | |
| Converted space: | 14,56 m³ | |
| Usable space: | 4,95 m² | |
| Station stop: | Rd30 | |
| Roof stop: | Rd16 | |
| Standard door dimensions | Clear door dimension | Clear door dimension |
| Construction dimension | Steel doors | Aluminium doors |
| W: 2675 x H: 1320 mm | W: 2585 x H: 1230 mm | W: 2615 x H: 1185 mm |
| W: 1100 x H: 1320 mm | W: 1030 x H: 1230 mm | W: 1055 x H: 1185 mm |
