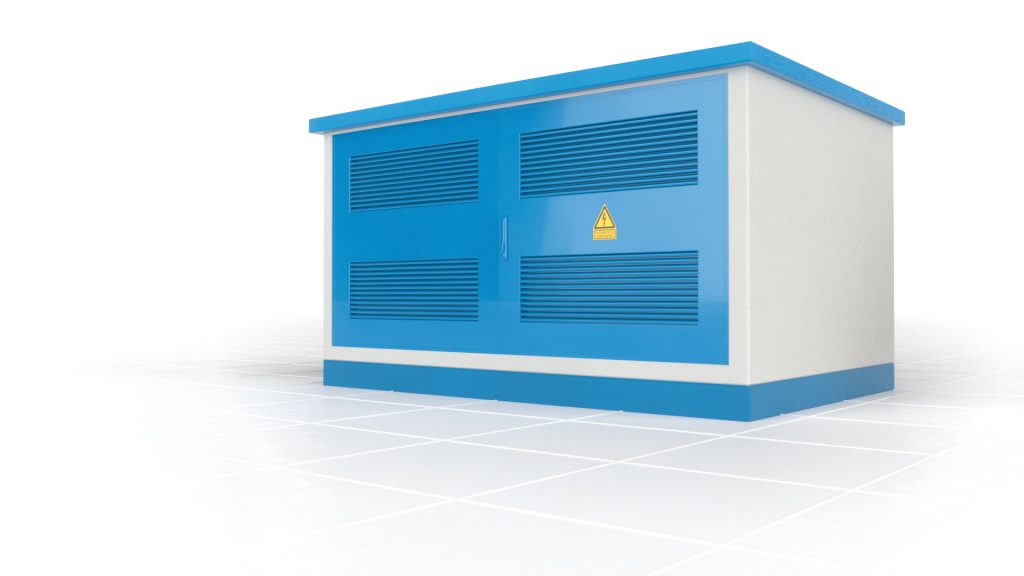

Non-walk-in stations, cell construction

The SCHEIDT SYSTEM NZ 210-290 in detail.

Technical data:

SCHEIDT SYSTEM NZ 210-290

 Rated capacity:  max. 630 kVA¹
External dimensions:
W: 2.10 m L: 2.90 m H: 2.39 m
Dimensions inside:
W: 1.86 m L: 2.66 m H: 2.14 m
Total weight empty:² about 8.06 t
Roof weight: about 1.96 t
Built-up area: 6.09 m²
Constructed space: 14.56 m³
Effective area: 4.95 m²
Station stop: Rd30
Roof anchorage: Rd16
Standard door dimensions Light door dimension Light door dimension
Standard dimensions Steel doors Aluminum doors
W: 2675 x H: 1320 mm W: 2585 x H: 1230 mm W: 2615 x H: 1185 mm
W: 1100 x H: 1320 mm W: 1030 x H: 1230 mm W: 1055 x H: 1185 mm

¹ Installed rated capacity depending on the transformer losses
and the ventilation technology used.

² Empty weight depending on the station structure.
