NZ 150-300 Technical data, dimensions

You are here: / Start / Products / Turnkey stations / SCHEIDT System NZ / NZ 150-300 Technical data, dimensions

SCHEIDT SYSTEM NZ

Non-walk-in stations, cell construction

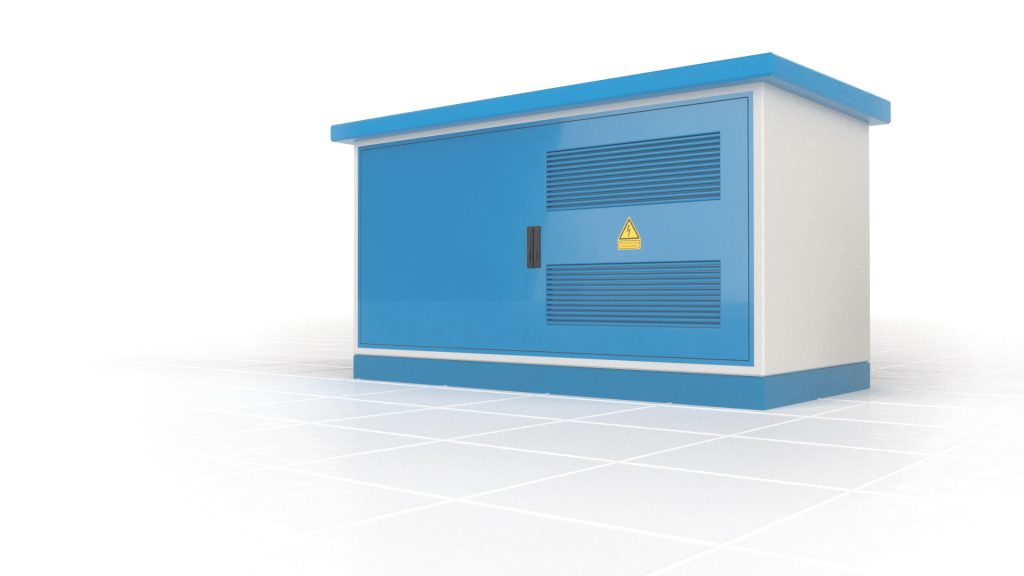

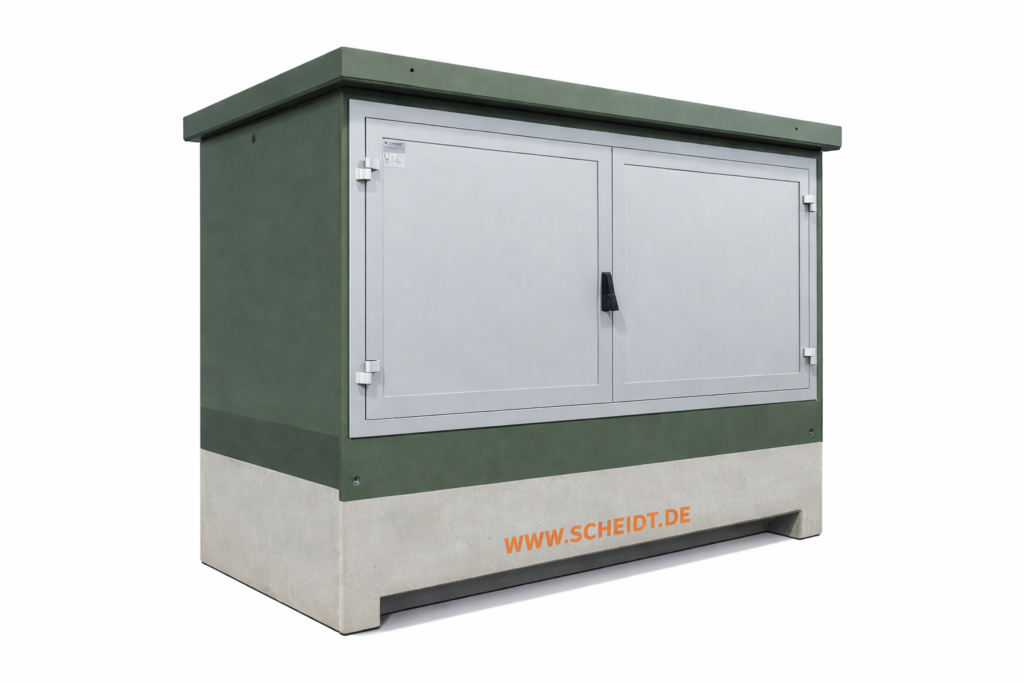

The SCHEIDT SYSTEM NZ 150-300 in detail.

Technical data:

SCHEIDT SYSTEM NZ 150-300

Rated capacity: max. 630 kVA¹
External dimensions:
W: 1.50 m L: 3.00 m H: 2.41 m
Dimensions inside:
W: 1.27 m L: 2.78 m H: 2.17 m
Total weight empty:² about 6.89 t
Roof weight: about 1.53 t
Built-up area: 4.50 m²
Constructed space: 10.85 m³
Effective area: 3.53 m²
Station stop: Rd30
Roof anchorage: Rd16
Standard door dimensions Light door dimension Light door dimension
Standard dimensions Steel doors Aluminum doors
W: 2775 x H: 1320 mm W: 2685 x H: 1230 mm W: 2715 x H: 1185 mm

¹ Installed rated capacity depending on the transformer losses
and the ventilation technology used.

² Empty weight depending on the station structure.

NZ 150-300
